optical fiber standard line

connector type
ferrule type
fiber type

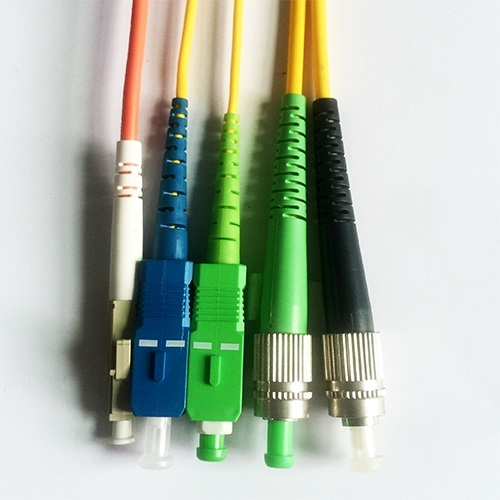

Product description: optical fiber standard line for kinds of precision instrument,FC/UPC,FC/APC,SC/UPC,SC/APC,LC/UPC,LC/APC,0.9mm fiber cable,2.0mm fiber cable,3.0mm fiber cable,single mode,multi mode fiber and any lenth

Product introduction

Optical Specifications
Insertion loss：UPC≤0.1dB APC≤0.1dB
Reflection loss：UPC≥55dB APC≥65dB

3D Specifications at APC Connector

Radius of Curvature:8mm-12mm
Offset of Fiber top:0um-30um
Fiber Height:±50nm
Ferrule concentricity:＜0.3

3D Specifications at UPC Connector
Radius of Curvature:10mm-20mm
Offset of Fiber top:0um-20um
Fiber Height:±50nm
Ferrule concentricity:＜0.3
