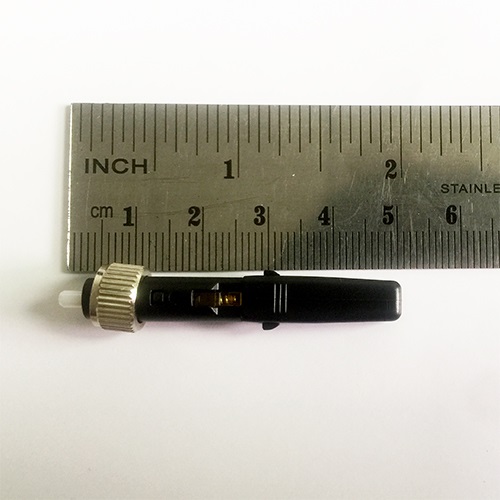

TFC optical fiber fast connector
- ferrule type

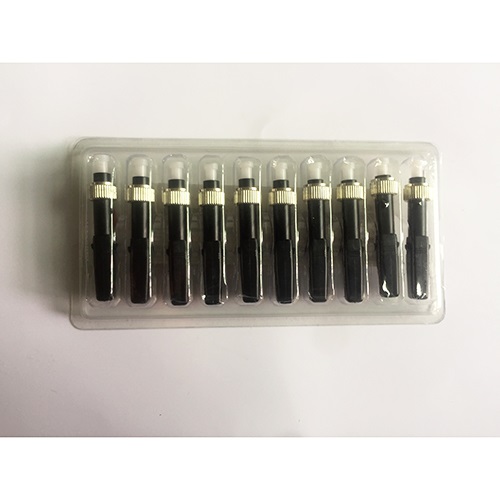

- packing

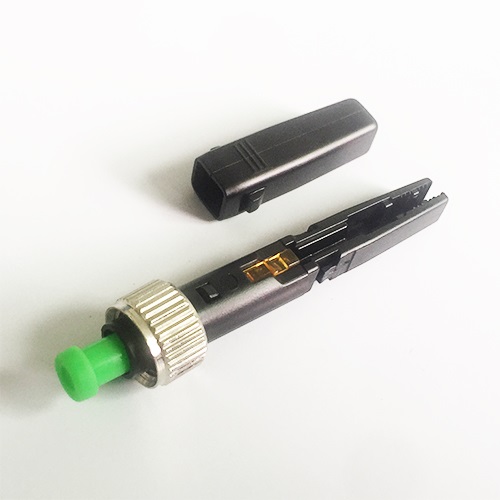

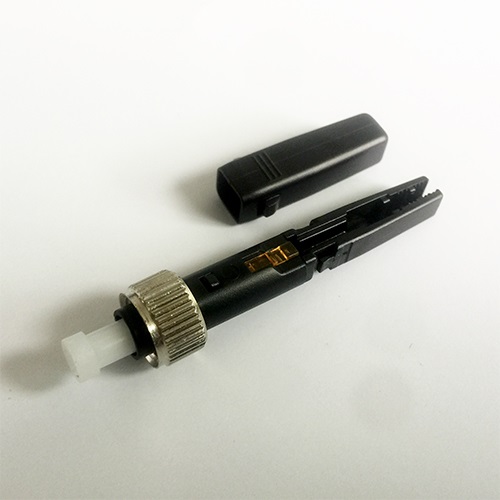

- Product description: TFC optical fiber fast connector,FC/UPC,FC/APC
Product introduction
It is reliable and easy to use for operation site assembling.
it does not need epoxy resin， solidify or polish.
It comes with a piece of pre-buried fiber, and uses a splice mechanic;
it supplies a fast, stable and reliable fiber connection.
All the key processions are finished in factory, to guarantee every time high quality connection.
It is easily to assemble and de-assemble, and can be used many times.
Only needs simple tools to assemble, thus it a low cost and high quality
Parameters
|
items |
test methods |
parameters |
|
application |
/ |
2.0/3.0mm indoor optics cable |
|
3.0*2.0 butterfly optics cable |
/ |
|
|
fiber Mode |
/ |
single/multi mode fiber |
|
Operation time |
simply trained, need not professional |
about 10S, prepare clean fiber time not included |
|
Insertion loss |
Optical source, and power meter |
≤0.30dB（1310nm&1550nm） |
|
reflection loss |
Optical source, and power meter, with winding methods |
≤-45dB1310nm&1550nm） |
|
Tensile Strength |
weights, tensile machine |
5N |
|
fiber tensile |
weights, tensile machine |
50N |
|
working temperature |
/ |
-40℃~+80℃ |
|
Hi-Low temp cycling |
room temp→-40℃→+80℃→room temp 12 cycles |
△≤0.2dB △≤5dB |
|
Damp Heat |
+40C,Relative Humidity 95%, 96 hours |
△≤0.2dB △≤5dB |
|
Immersion test |
+25℃, tap water, 144hours |
△≤0.2dB △≤5dB |
